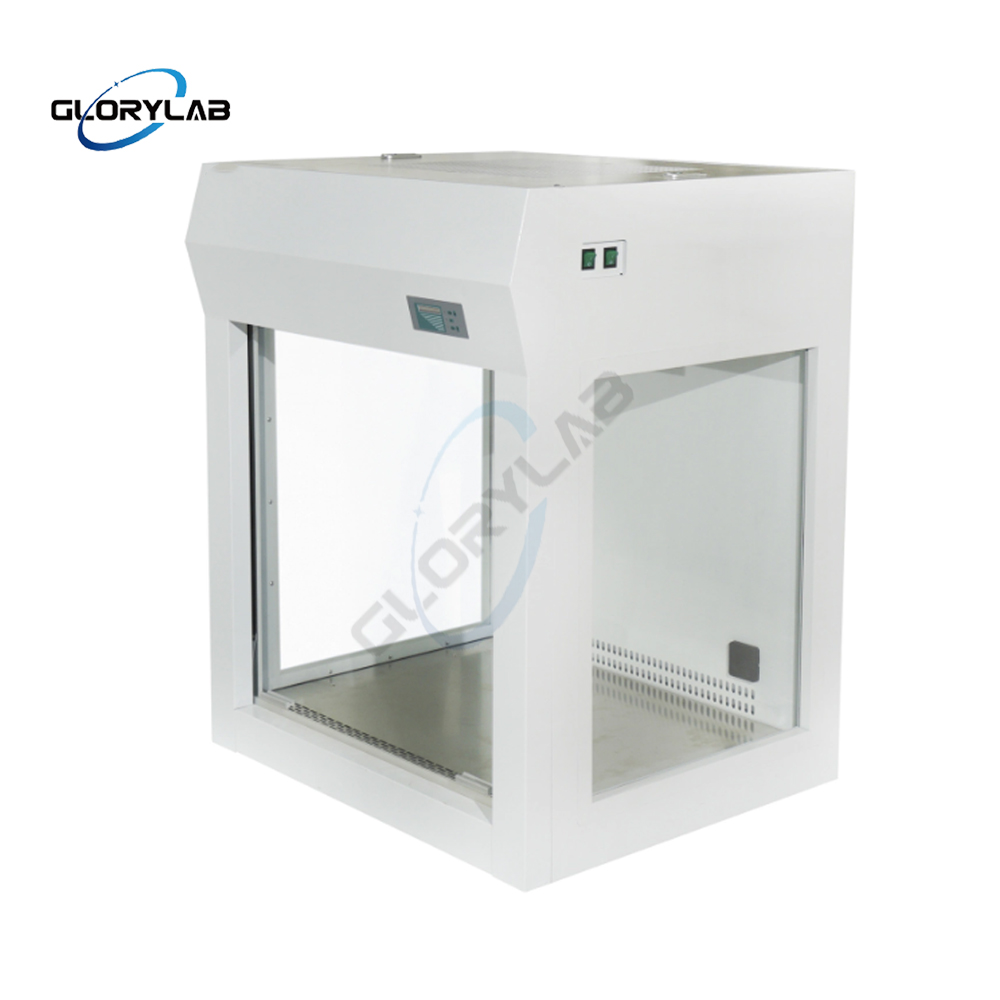

Desk Small Vertical Laminar Flow Cabinet for Laboratory(JH-1DZ)


Model: JH-1DZ

Main Technical Parameters:

Model JH-1DZ
Applicable Station one person one side
Airflow Direction Vertical
Function Cleanliness Class 100(ISO Class 5)
Collection Efficiency 0.3um particle ≥9.995%
Colony count ≤0.5/vessel ( petri dish isφ90mm )
Wind Speed initial: 0.5;final: 0.2 (m/s )
Wind Speed Range 0.2-0.5 (m/s)
Noise Level ≤62db
Vibration Semi-peak Value ≤3um
Illuminat Lntensity(Lx) ≥500LX( Activity Center )
Work Surface 50kg
Composition Inner Chamber SUS304 Stainless steel plate
Outer Shell Cold rolling steel electrostatic spraying exterior
Operation Door Tempered Glass
HEPA Filter ( mm ) 780*533*50 one piece
Pre- Filter ( mm ) 532*446*5 one piece
Fluorescent Lamp 8W*1
UV Lamp 8W*1
Top Fan 160W one piece
Rated power 180W
Controller Display LED
Wind Speed Control Intelligent multi-level adjustable
Additional Function Buit in 1 multi-purpose socket,high-efficiency filter,sterilization lamp replacement prompt,foot level adjustment, open the door and cut off UV function
Specification Inner Size ( W*L*H) 788*613*700
Exterior Size (W*L*H) 852*714*1082
Packing Size
( W*L*H )mm		 972*834*1292
Max power of
universal socket		 800W
Current Rating
( 50/60Hz )		 AC220V/0.8A
NW/GW kg 90/120
Optional USB internal and external data connection socket, color LCD controller,Special configuration for 3D printer
