Model: JH-BT005
Patented high-tech vibration table with 90%~100% triple vibration absorption, the most popular and welcome design, innovative structure, best performance.

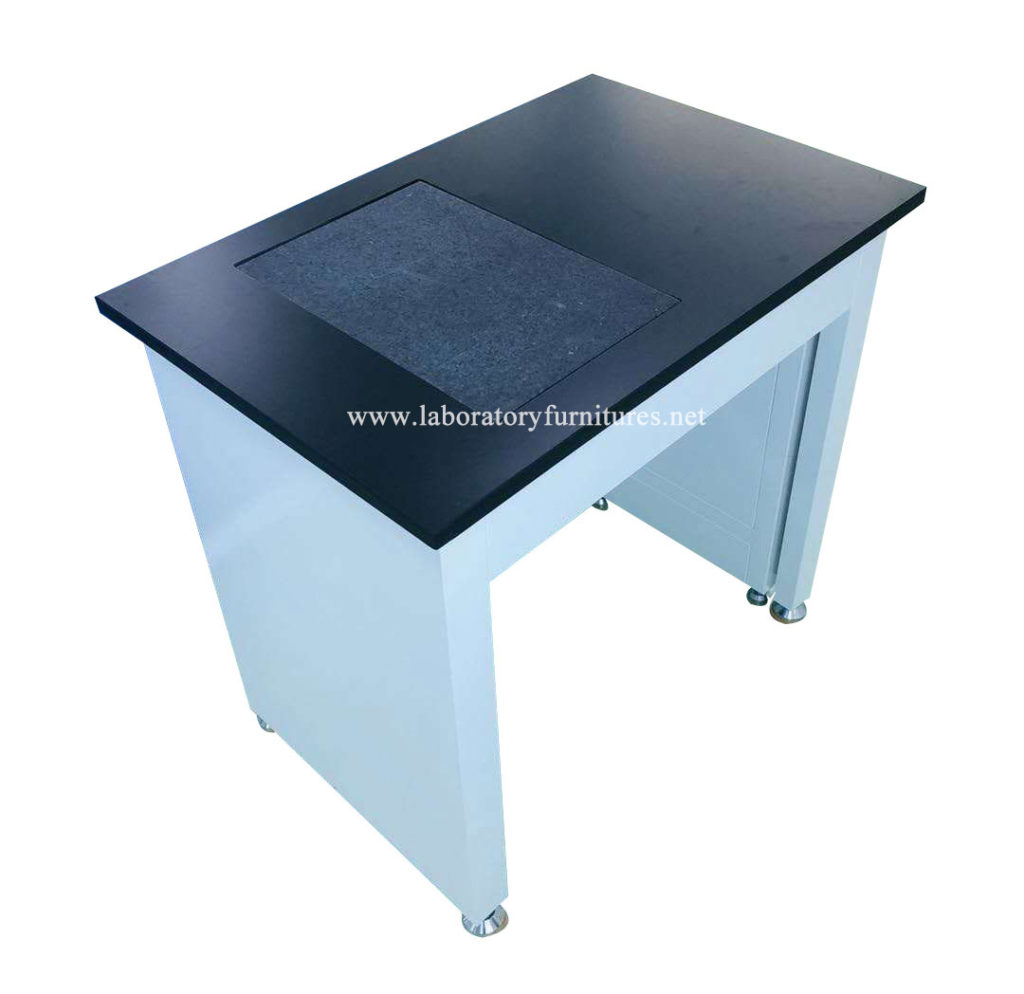

Description of vibration table:
Simple appearance, double-layers separation design, four levels shock proof, strong and stable.
1.It adopts the split structure.The outer anti-collision structure comprised of 1.0mm steel plate with 60mm wide square tube, which supports the phenolic resin panel to ensure that the marble is completely free from impact.The inner steel frame supports the marble combining with TPU damping feet to avoid the marble vibration caused by the ground-based vibration.
2.Adopting anti-rust heavy-duty adjusting feet with 12mm thick connection rod and chassis with diameter 60mm, this balance table is equipped with TPU (polyurethane) shockproof chassis with inner chassis with diameter 40mm.
3.Initiative TPU combining double damping and suspension technology of the hydraulic shock absorber, which ensure the normal operation of the ultra micro balance after being hit.
Specifications and test data:
| Exterior size | 900x600x850/900 | Shockproof mode | shock absorption+rigid self weight |
| Marble size | 450x300x60 | Shock absorption mode | hydraulic pressure+elastomer |
| Weight | 72 kilograms | Damping effect 1 | 100% |
| Shockproof structure | separate | Damping effect 2 | 90% |
| Purpose | hundred thousandth,can be used for one millionth balance |
Test Remark:
1. We use genuine TPU heavy duty foot pad with weight capacity 1000KG for all balance table while adopting custom-made 75 degree PU shock absorption pad for buffering marble.
2. Damping effect1 means that the shock absorption test is based on the vertical impact of 500g objects on the desktop done in the factory, calcuated at the maximum value.
3. Damping effect 2 means the damping test is based on ground based vibration done in our factory,calculated at the maximum value.
Packing
1. Packing balance table in full container:
Worktop and table body are packed separately to enusre its safety.
2. Packing vibration table for LCL:
Thick honeycomb box is adopted in order to protect goods from damage during international transport.
