Model: JH-BT006
Test data shows that its damping effect ranges from 50%~60%. Affordable vibration table for normal lab use.
Description:

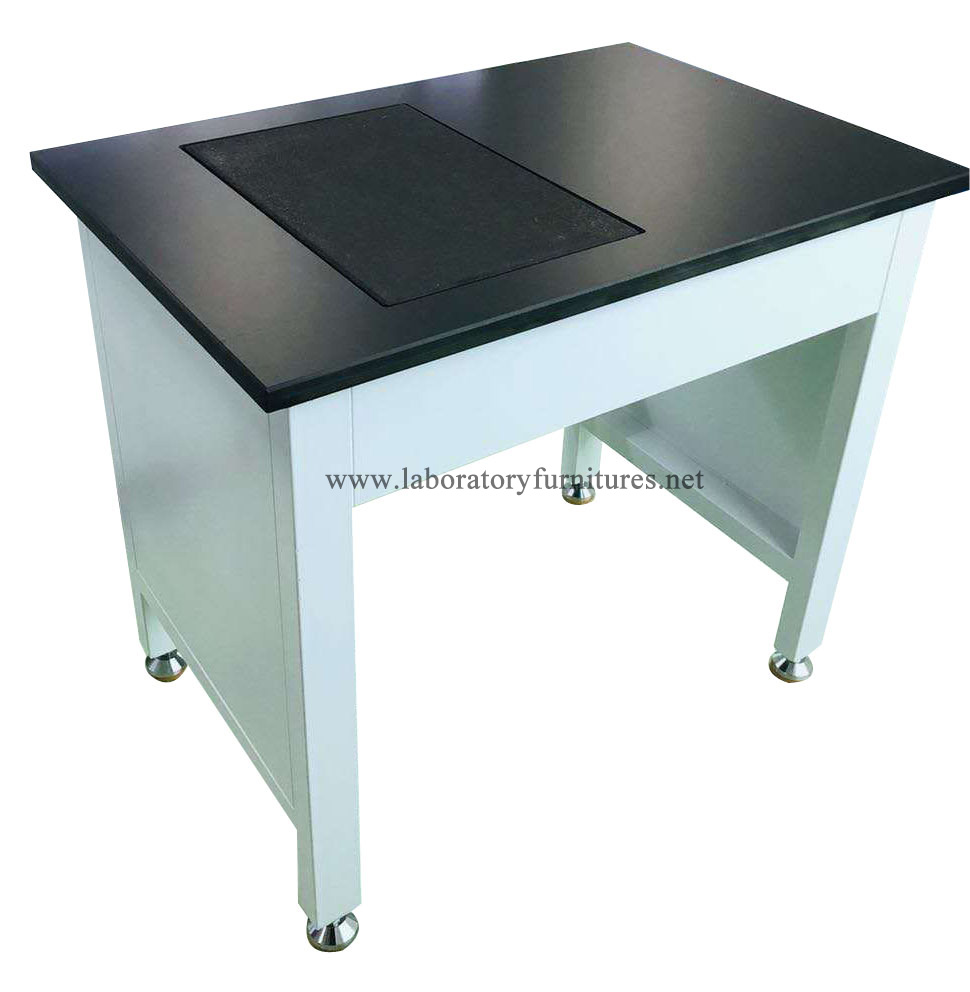

Simple appearance, smooth lines, three-levels shockproof design.
1.It is made of 1.5mm galvanized steel pipe and 1.0mm steel plate welded through multiple processes to ensure the stability of balance table. It’s coated with Akzonobel powder.
2.Adopting anti-rust heavy-duty adjusting feet with 12mm thick connection rod and TPU (polyurethane) shockproof chassis with diameter 60mm to ensure the stability of worktop.
3.The natural marble is separated from the phenolic resin wokrtop and supported by selected 75 degree PU elastic material,which can eliminate the possible influence to marble from outside.
Specifications and test data:
| Exterior size | 900x600x800-50 | Shockproof mode | shock absorption+rigid self weight |
| Marble size | 450x300x60 | Shock absorption mode | elastomer |
| Weight | 57 kilograms | Damping effect 1 | 50% |
| Shockproof structure | whole | Damping effect 2 | 60% |
| Purpose | ten thousandth,can be used for hundred thousandth balance |
Test Remark:
1. We use genuine TPU heavy duty foot pad with weight capacity 1000KG for all balance table while adopting custom-made 75 degree PU shock absorption pad for buffering marble.
2. Damping effect1 means that the shock absorption test is based on the vertical impact of 500g objects on the desktop done in the factory, calcuated at the maximum value.
3. Damping effect 2 means the damping test is based on ground based vibration done in our factory,calculated at the maximum value.
Packing
1. Packing balance table in full container:
Worktop and table body are packed separately to enusre its safety.
2. Packing for LCL:
Thick honeycomb box is adopted in order to protect goods from damage during international transport of vibration table.
