Model: JH-EW006R
Product advantage:
1.Following US standard ANSI Z358.1, the highest standard in field of eye wash.
2. Selection of national 59-1 grade(special grade A)/H63 high quality brass,high cooper content/
hardness,less impurities, not easy to deform.
3. Updated and modern CNC lathes/milling/automatic molding machines are adopted, which enhance the production efficiency, procssing accuracy, as well as production efficiency.
4. The world’s most advanced CNC process multi-channel in one ime,which ensure the ultra high pecision of the processing size and surface finish.

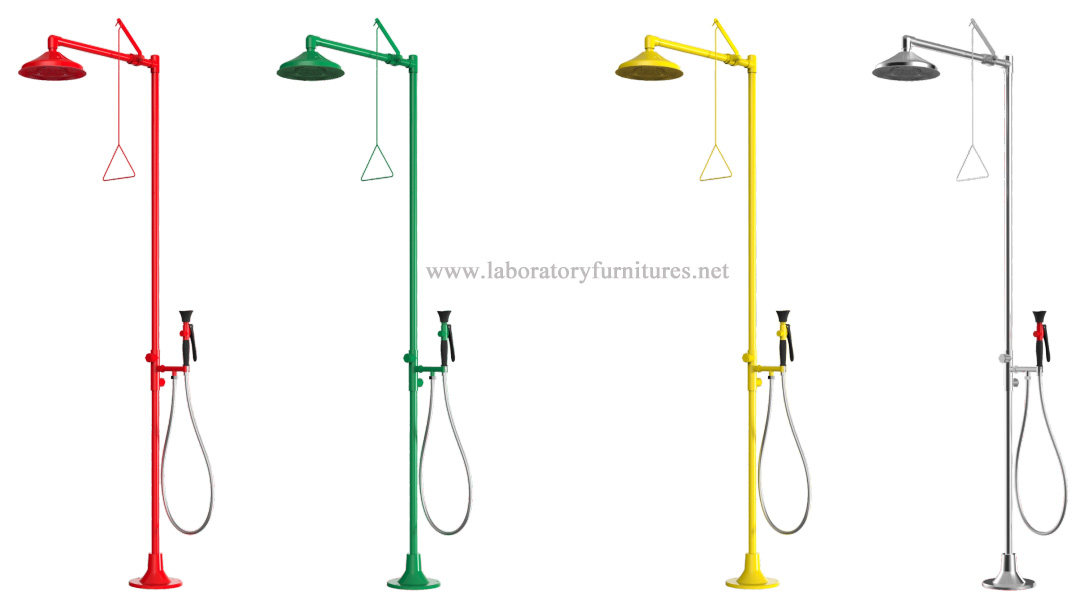

Available color:
Yellow, red, green,stainless steel or customized.
Description:
1. Structure:
Eye wash nozzle: a nozzle for cleaning eyes and face.
Dust cover of eyewash nozzle: a dust-proof device used to protect eyewash nozzle.

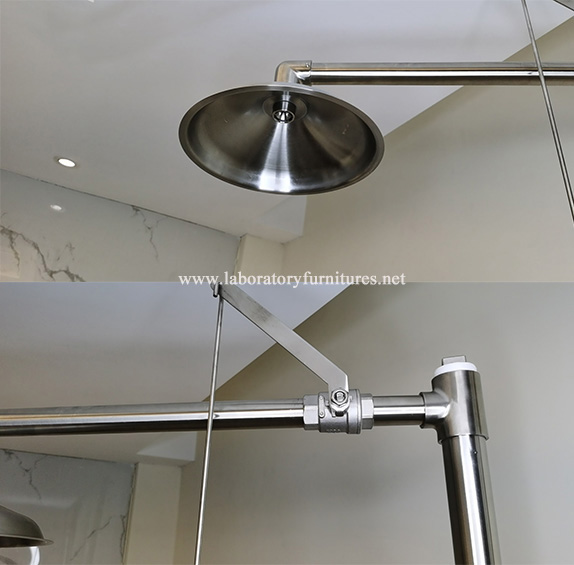

Shower nozzle: used to clean the whole body.
On/off valve: valve device used to open and close water flow, divided into push and pedal.
A device used to direct the flow of water.
Filter screen: used to filter out debris entering the eyewash.
Base: fixed eye washer.

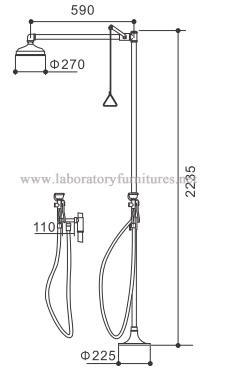

2. Specification and data:
Material: 304 stainless steel/epoxy coated stainless steel
Style: manual / pedal type
Performance: anti corrosion, acid, alkali, salt solution
Water output: water output of eye washer nozzle: 12-18L/min, spray water: 120-180L/min
Spray head: High-density PP/S. S, built-in S. S filter web to remove impurity from waterRequire to use 1 1/4 pipe to connect drink water pipe.Min water pressure: 4 bar
Water flow:Single outlet eye wash>6L/Min. Double outlet eye wash>10L/Min.
Shower>30L/Min
