We are professional eletronics cleanroom provider on integrated solution basis covering professional consulting,designing,material delivery,installation, commissioning, perfect after-sales work.
Cleanroom Floors
1. Epoxy self-leveling flooring:
2. Solvent-free type,
3. Solvent type
4. PVC floor:
5. Antistatic type
Remark: Various color is available for different classification if required.
| Standard Width | 1150mm |
| Max Length | 7500mm |
| Wall thickness | 50mm,75mm,100mm,150mm |
| Steel Thickness | 0.4-0.8mm |
| Outer plate material | PPGI,Al-mg-Mn Alloy steel,SS steel,Ti-Zn steel,HPL,VCM |
| Coating | PE,PVDF,HDP |
| Core material | PU,rock wool,magnesium board,paper honeycomb,aluminium honeycomb,plaster,EPS, etc. |
| Frame Thickness | 0.6-0.8mm |
| Application | Pharmaceutical Cleanroom, Electronic Cleanroom, Food Cleanroom, etc. |

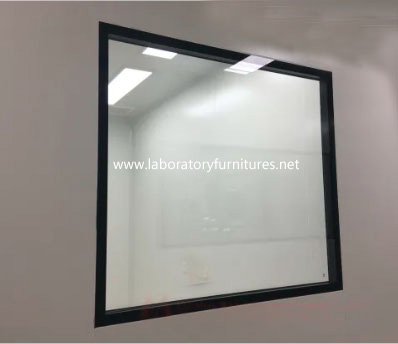

Window
| Frame Material | Al. Alloy, SS |
| Glass | Tempered glass, fire-proof glass, Smart glass (Laminated) |
| Thickness | 50mm, 75mm, 100mm, can be customized |
| Glass edge color | White, Black |
| Glass thickness | 5mm, 6mm, 15mm |
| Fill In | Desiccant, Nitrogen gas |
| Window corner | Square, Round |
| Standard size | 1000*1000mm, 1000*2100mm, 1800*1200mm, Can be customized |
Lamp
1. Purification lamp
| Frame Material | Al. Alloy, SS |
| Uniform light distributor | PC |
| Specification | 6W, 9W, 12W, 15W, 18W, 20W. |
| LED | LED package light strip with aluminum substrate |
| Efficiency | 85lm/w |
| Lifetime | 3 years. |
| Working Temperature | -10 ~ +40oC |
| Working Humidity | <80%> |
| Engergy saving | above 80% |
| IP Class | IP20, IP54 |
2. Full covering lamp
Stainless shell, T5,T8 saving lighting.
Specification: 1x20W, 1x30W,1x40W,2x20W, 2x30W, 2x40W.
Other System
| 1 | Electric: Switch, Cables, Wires, Power Distribution Cabinet, etc |
| 2 | HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc. |
| 3 | Auto-control: PLC Controller, Sensors for Humidity and Temperature, Control Panel |
| 4 | Process Piping System: Gas, Water Pipeline |
Main Cleanroom Equipments
| 1 | Static/dynamic pass through box |
| 2 | Air shower |
| 3 | Sampling and weighing booth |
| 4 | Laminar air flow/FFU |
| 5 | Hand disinfector and dryer |
| 6 | Gowning lockers and benches |
Welcome to provide us with CAD plan drawing and detailed requirement, our experience designers are capable of desiging perfect eletronics cleanroom as per your budget satisfying your requirements on temperature/humidity/cleaniness grade/working procedures etc.
Any requirement reagarding electronics cleanroom, pls don’t hesitate to reach out to us. Our registered HVAC/Electricity/Pipomline engieers are ready to serve for you any time.

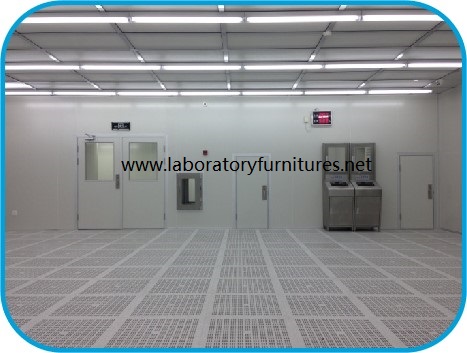

Project Pictures:
