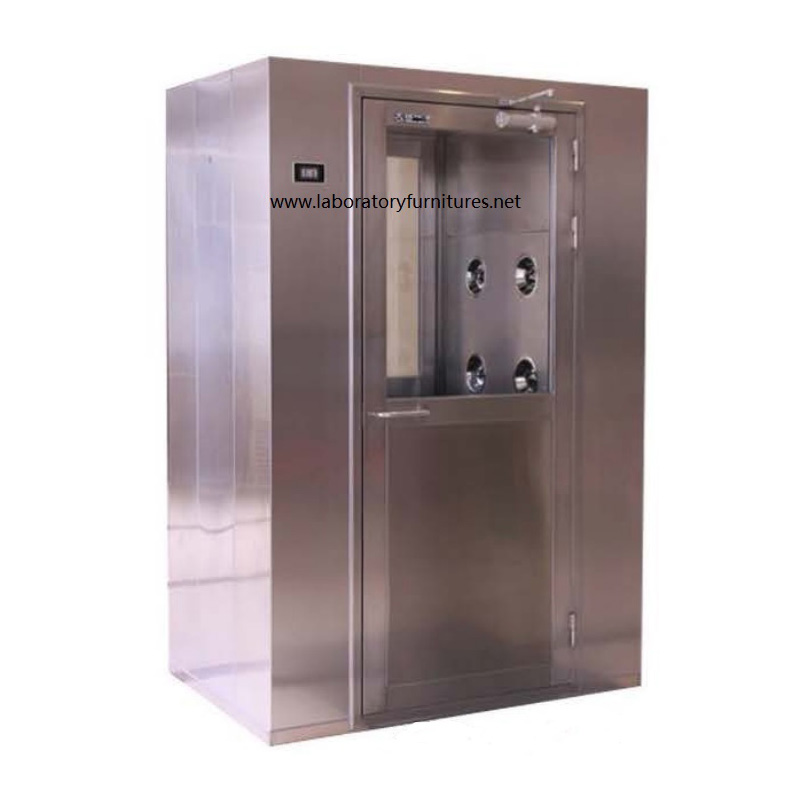

Class 100 Auto Door Air Shower Room


Ce Certificated Personnel Air Shower for Clean Room

Comptitive price Intelligent Explosion Proof Air Shower Room with CE certificate is made of full stainless steel. It is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers’ needs.

JH-AS01 Single Person Air Shower
Model:JH-AS01(Suitable for 1 person)
Material: SUS 304
Overall Dimension(mm): 1400(W)*1000(D)*2100(H)
Air Shower Area Dimension (mm): 800(W)*900(D)* 1960(H)
Nozzle Number: 12(two-side blowing),
Nozzle Material: stainless steel
Diameter of Nozzle Mouth: Φ30mm
Air Velocity at the Nozzle: ≥25m/s
Filters:pre-filter*2pcs,HEPA filter*2pcs, filters are produced in Class 10,000 clean room; Efficiency: ≥99.995% (sodium flame method), particle siz≥0.3µm
Lamp: LED lamp* 1 pcs
Air Shower Mode: automatic and manual
Fan: low-noise, high-pressure, centrifugal fan*2pc; Power: 1.1KW
Shower Time: 0-99s adjustable
C
ontrol Panel: New touch-screen panel, Electronic Interlocking
Power Supply: 380V,50Hz, Three-phase five-line (can be customized)
Package: wooden case
Door: Manual Door (Pull the handle to open)

Technical Parameters:

ModelAS-S1AS-S2AS-S3AS-S4
Applicable Number of People12-44-55-6
Air Shower Time0- 99s (Adjustable)0- 99s (Adjustable)0- 99s (Adjustable)0- 99s (Adjustable)
Number of Nozzle12 (Two Sides)24 (Two Sides)36 (Two Sides)48 (Two Sides)
Mouth Diameter of NozzleΦ 30 mmΦ 30 mmΦ 30 mmΦ 30 mm
Speed of Air Flow at the Nozzle>25m/s>25m/s>25m/s>25m/s
Dimension of High Efficiency Air Filter (mm)600×600×120600×600×120600×600×120600×600×120
Dimension of Air Shower Area (mm)800×900×1960800×1900×1960800×2900×1960800×3900×1960
Outside Dimension (mm)1400×1000×210 01400×2000×21001400×3000×21001400×4000×2100
Power Supply380V,50HZ, we can made nonstandard voltage for different country.380V,50HZ, we can made nonstandard voltage for different country.380V,50HZ, we can made nonstandard voltage for different country.380V,50HZ, we can made nonstandard voltage for different country.
Maximum Power Consumption1.1KW2.2KW3.3KW4.4KW
