Type: JH-LF008

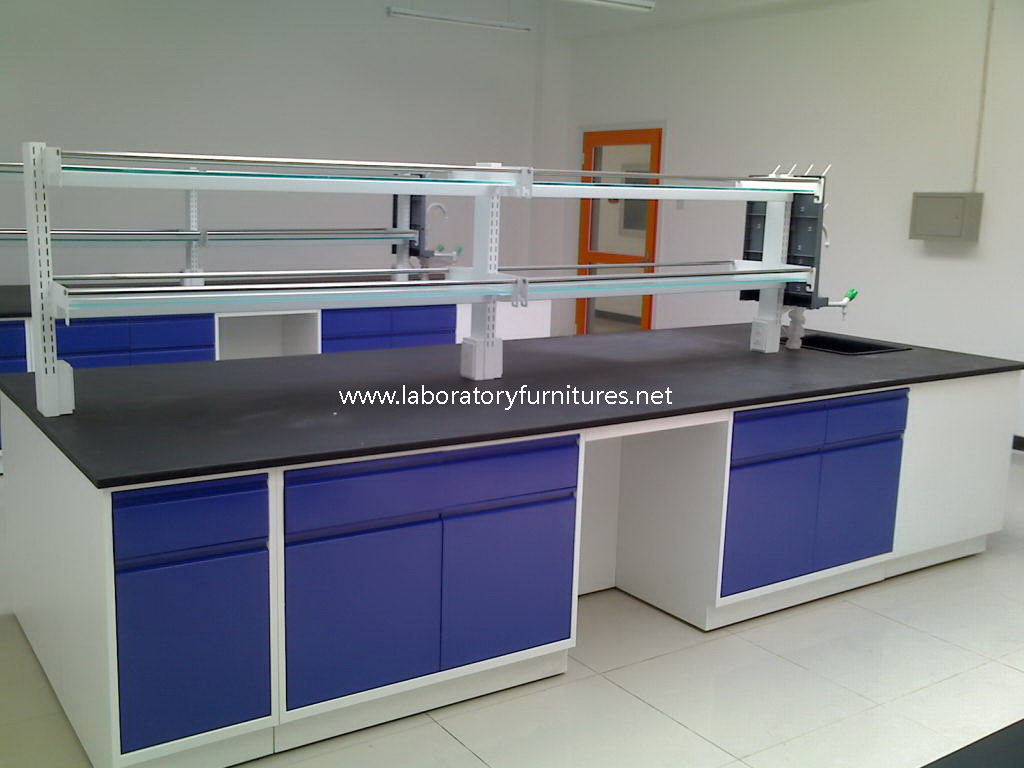

The steel lab furniture is with typical design and standard colour which is very popular to be used in lab. Free standing structure, it means simple installation and will shorten the installation time. Also weight capacity can be assured.
Material Description of steel lab furniture:
| Worktop | a.12.7/16/19mm lab grade phenolic resin countertop. b.16/19mm epoxy resin countertop. c. 20mm ceramic countertop. d. 20mm stainless steel countertop mounted with 18mm plywood/MDF. e. 16/20mm trespa countertop. |
| Structure | Floor mounted/C-frame/H-frame/O-frame |
| Size | L*750/1500*850/900mm.(LxWxH) or customization |
| Color | White, gray, blue or specified by customer |
| Cabinet /panel material | 1.0/1.2mm cold-rolled/galvanized steel sheet coated with epoxy resin powder after acid pickling, phosphating,oil and rust removing. |
| Door and drawer | double-layers structure with sound absorbing material inside,keeping noise minimum when door is opened or closed. |
| Cabinet size | 450/500/600/900/1000mm wide or customized size. |
| Frame | 60x40x2.0/40x40x1.5mm/30x30x1.5mm steel pipe coated with epoxy resin powder. |
| Hinge | 304 S.S hydraulic/exterior hinge. |
| Handle | U-shape 128/160mm S.S handle, aluminum alloy grab handle,or any type specified by customers. |
| Reagent shelf | made up of tempered glass and steel plate. Optional model: normal/American model. |
| Wall mounted cabinet | Single/double door with all-steel door or steel door embedded with glass, with 1 adjustable shelf. |
| Sink | Polypropylene/ceramic/epoxy resin sink. |
| Faucet | single-outlet/triple-outlets faucet, hot-cold water faucet. |
| Socket | Universal/British/European socket, water-proof or explosion proof socket. with steel separate standout or long aluminum electric trunking, based on customers’ local needs. |
| Other available accessories | PP/stainless steel pegboard, eye wash, emergency shower,lab stool etc. |

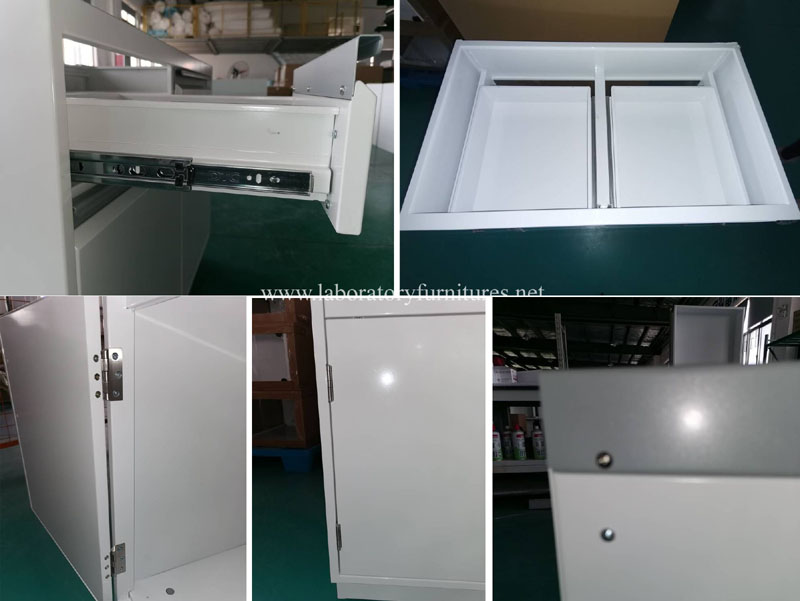

Product Details of Steel Lab Bench:
Sample Drawing for Free:

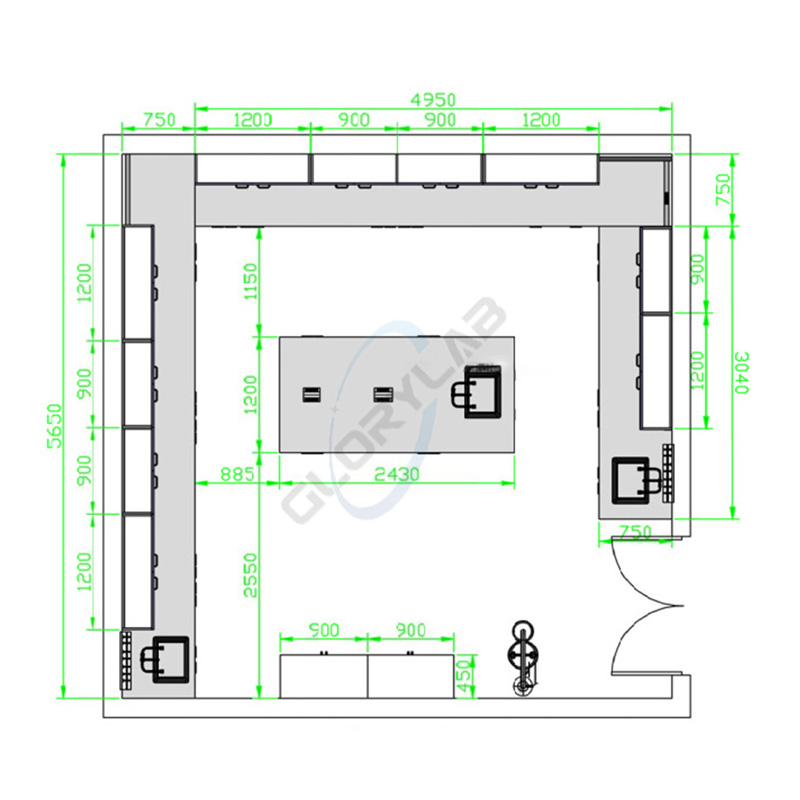

Plan Drawing

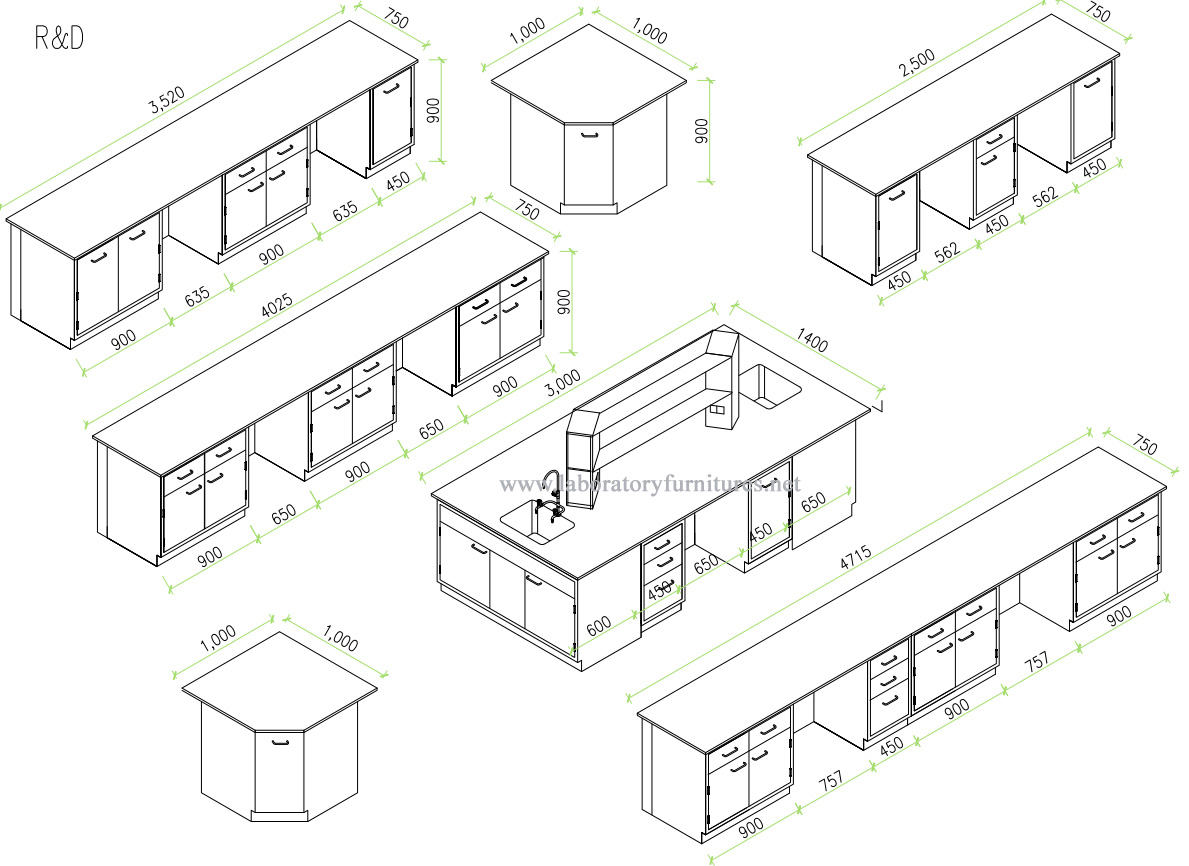

2D Drawing

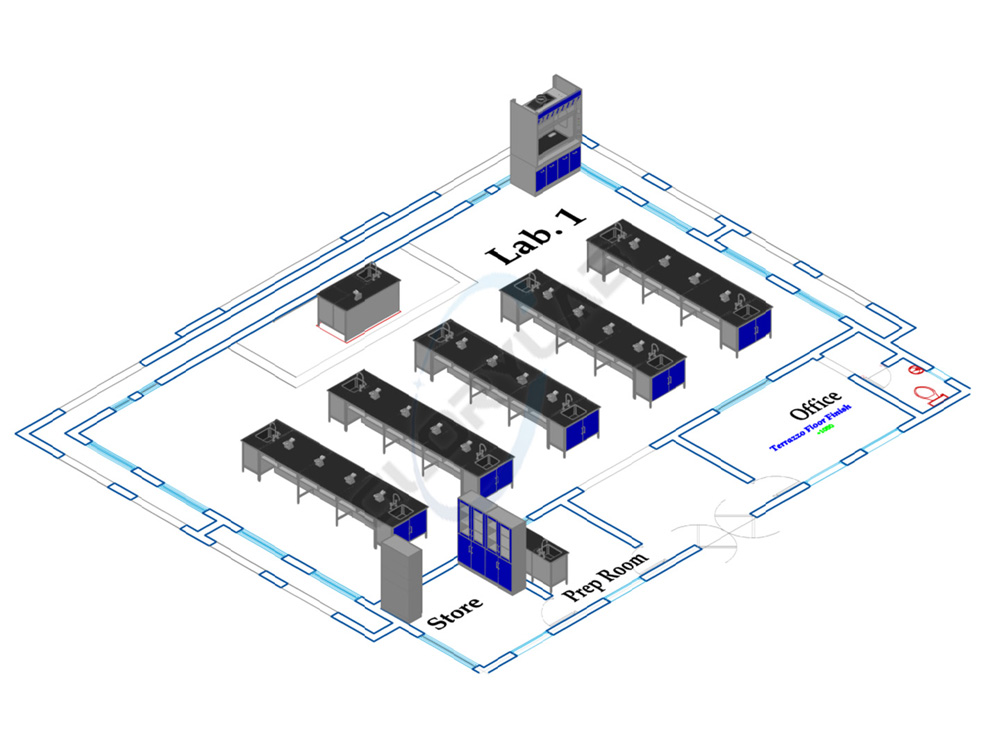

3D Drawing

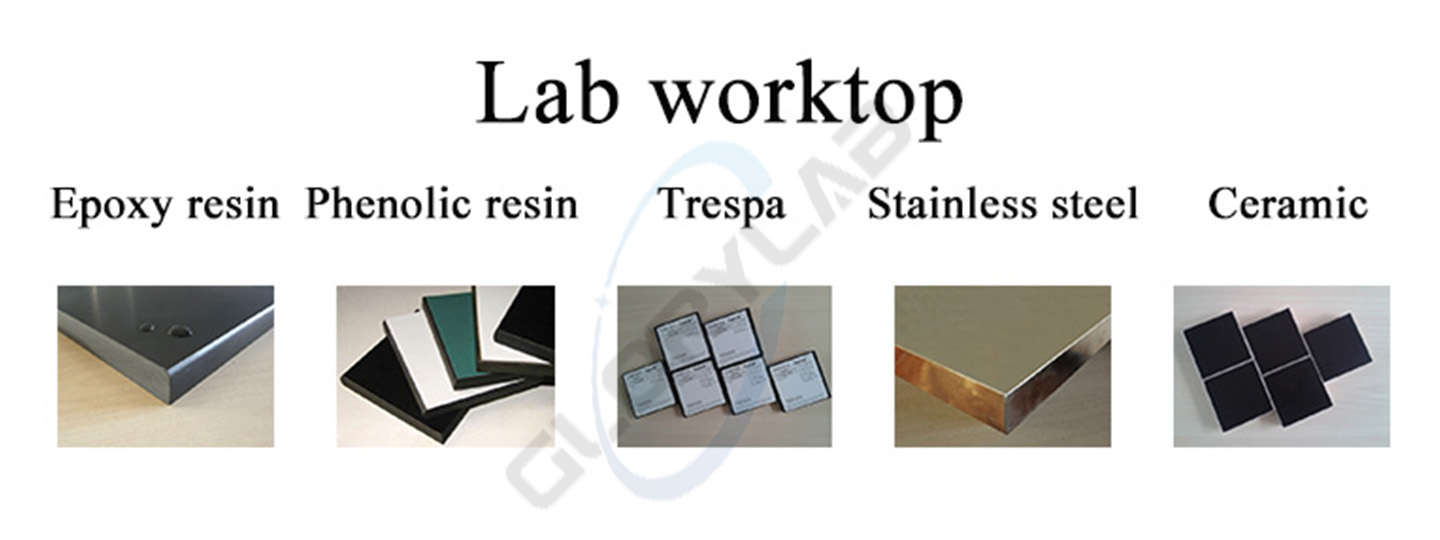

Options of Laboratory Worktop:
