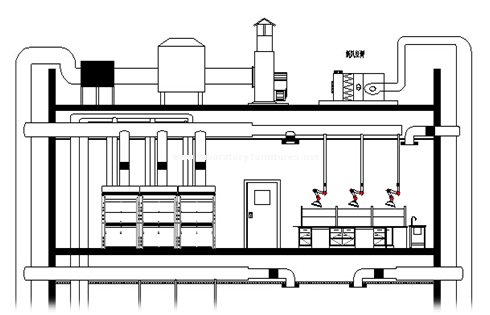

Exhaust and makeup air system

Design parameters of terminal exhaust equipment

The design ventilation volume of a single 1800 type ventilator is 250-1900 CMH. The ventilation volume of 1600 CMH is taken as the basis of design calculation in this project.

Atomic absorption hood design exhaust volume: 250-350 CMH;

Universal hood design exhaust volume: 100-150 CMH;

Laboratory ventilation times: > 8 times/h.

Ventilation system uses terminal noise < 65dB (A).

The waste gas shall be discharged to the atmosphere after treatment.

•
