Type: JH-WF023

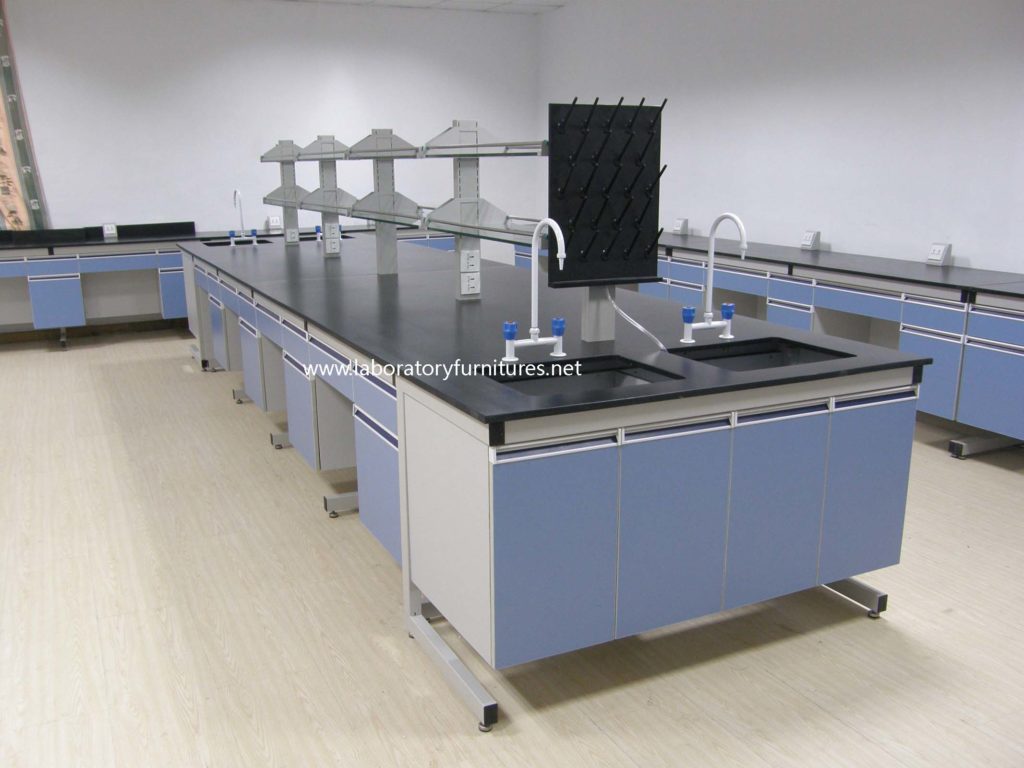

This wood and steel lab central bench is for Saudi Arab.
A. Metal frame:
1. Material for upright frame: It’s made of 60X40X1.5mm steel pipe by welding, it’s with epoxy resin powder after acid-washing and phosphorization.
2. Connection wing:welded steel part on C-frame itself, it depends on customer’s requirement.
3. Adjustable feet: Using M10 screws(treated by galvanization) with adjustable height not less than 10mm.
B.Worktop:
19mm epoxy resin worktop which are resistant for chemicals and high temperature. The worktops can be washed easily.
The worktop can bear the weight about 200-300kg. The gap height between worktops≤2mm.
C.cabinet:
1. Door: The material is E1 standard 18mm chipboard with 2mm PVC water proof edgings.
2. Side panel and layer panel: The material is E1 standard 18mm chipboard with 2mm PVC water proof edgings.
3. Back panel: E1 standard 18mm chipboard with 2mm PVC water proof edgings. The back panel can be dissembled and it’s convenient for installation and maintain of pipe and electricity cable.
4. Drawer: The material is E1 standard 18mm chipboard with PVC water proof edgings.
5. Drawer sliding rail: Using steel 3-joints weight bearing sliding rail without noise on both sides of drawer.
6. Handle: Using high quality plastic grab handle.
7. Hinge: 304 stainless stee hydraulic hinge which is rust resistance.
